As tableting machine manufacturers, we provide comprehensive solutions. De-dusters and dust collectors are a necessity in most pharmaceutical tableting companies. They improve quality, ensure trouble-free production, enhance the speed of the tablet presses and hence increased productivity.
De-Dusters
A de-duster ensures that the tablets are clean, do not have any loose particles and are undamaged when they reach the end consumer. It also removes burr on the edges thereby reducing packaging problems and improving tablet appearance.

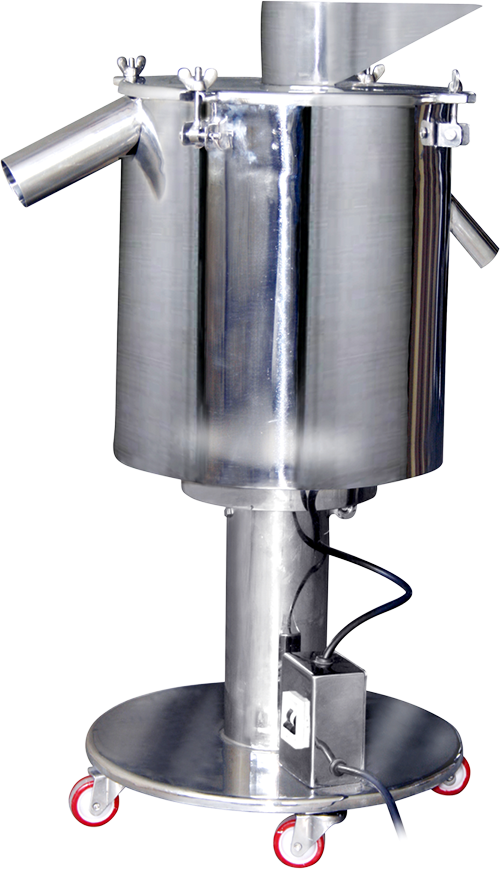

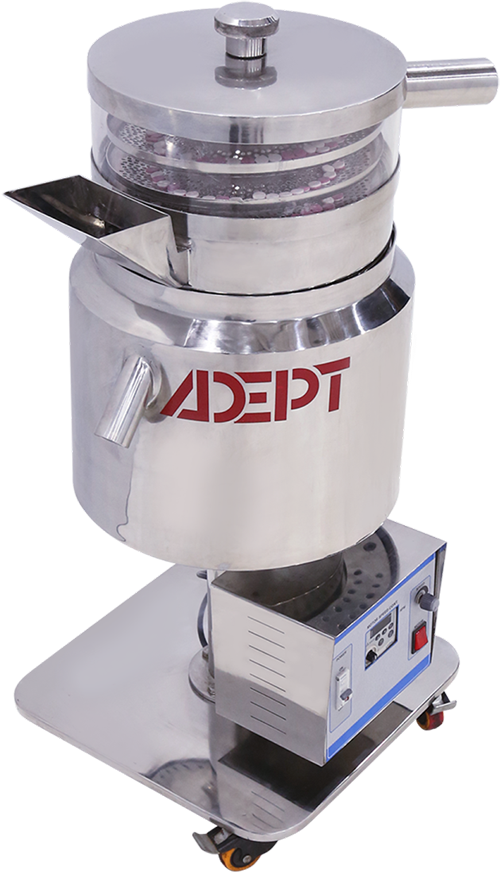

We offer 2 types of de-dusters: Elevating Model and Vibratory Model
Technical Details
| Machine Name | Elevating – 4 Dish | Elevating – 9 Dish | Vibratory |
|---|---|---|---|
| Model Name | AED S 4-Dish | AED S 9-Dish | AVD S |
| Tabet Diameter – Min | 5 mm | 5 mm | 5 mm |
| Tabet Diameter – Max | 40 mm | 40 mm | 40 mm |
| Dedusting Length | 2.25 m | 4 m | 1.5 m |
| Speed | Adjustable | Adjustable | Fixed |
| Intensity | Adjustable | Adjustable | Fixed |
| Inlet Height | 775 to 975 mm | 775 to 975 mm | 700 to 825 mm |
| Outlet Height | 775 to 975 mm | 990 to 1190 mm | 550 to 675 mm |
| Inlet Chute Size | 130 x 100 mm | 130 x 100 mm | 125 mm wide |
| Outlet Chute Dia | 50mm | 50 mm | 50 mm |
| Motor Details | 0.25HP x 2 nos | 0.25HP x 2 nos | 0.125HP x 2 nos |
| Machine Size (L X W X H) | 45 x 60 x 90 cm | 45 x 60 x 115 cm | 50 x 40 x 75 cm |

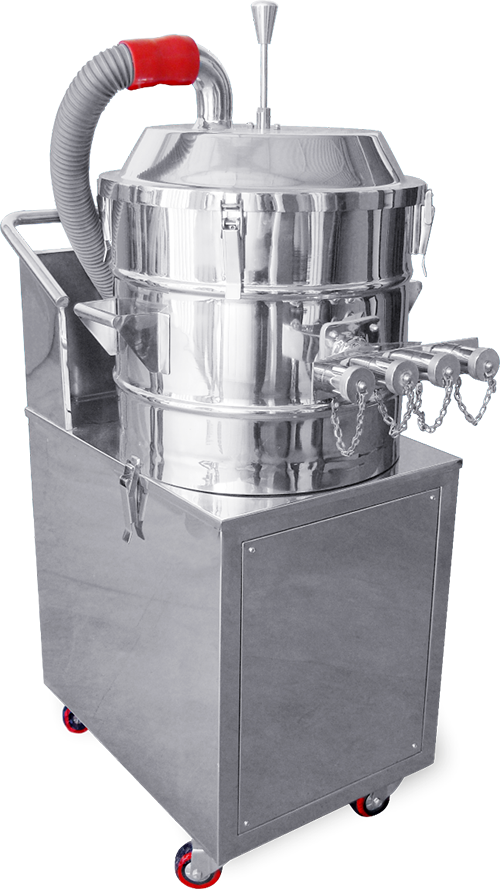

Dust Collector
A lot of dust is generated during the compression process. This dust if not controlled, settles in the upper punches, turret and other parts in the compression zone. Excess dust in the compression zone can lead to black particles, upper punch jamming and various other problems. It is therefore advisable to have a dust collector unit attached to the tablet press to collect the dust generated.
Technical Details
| Machine Name | 100 CFM |
|---|---|
| Model Name | ADC C 100FM |
| Max Suction Capacity | 120 CFM (240m3/hr) |
| Filteration Area | 4200 sq. cm. |
| No of bags | 1 |
| Dust Collection Area | 20 ltrs |
| Inlet Details | 4 x 38mm Dia |
| MOC – Collection Drum | S.S. 316 |
| MOC – Other Parts | S.S. 304 |
| Motor Details | 2HP / 3PH |
| Machine Size (L X W X H) | 45 x 65 x 140 cm |
