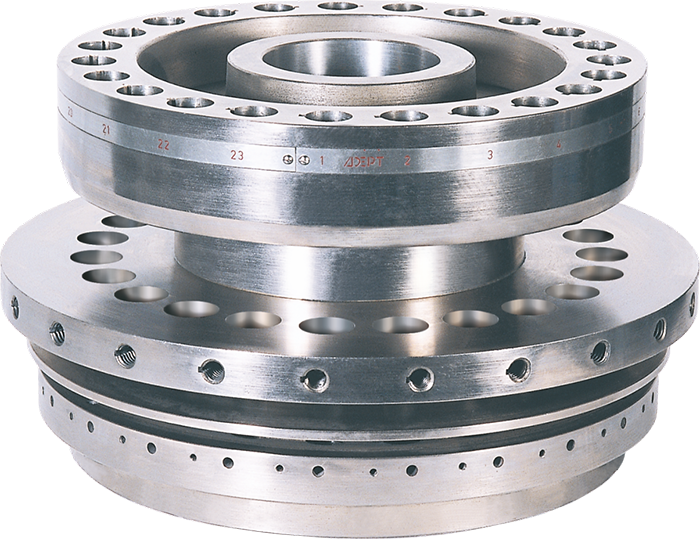

We offer higher station turrets to help increase the production of your existing tablet press. All you need to do is change the turret, which usually takes less than five hours. The cam-plate and cam-tracks do not have to be changed if the tooling type remains same. We provide higher station turrets for Manesty, Cadmach and Stokes machines.
Technical Details
For Single Rotary “D” Tooling 16 Station Tableting Machines
| No of Station | Max Tablet Size | Die O.D. | Tooling | Production Increase | |||
|---|---|---|---|---|---|---|---|
| Round | Caplet | Punch | Die | ||||
| Existing | 16 | 25 | 25 | 38.10 | D | D | |
| Proposed | 20 | 25 | 25 | 38.10 | D | D | 25% |
| 23 | 19 | 21 | 30.16 | D | D | 43% | |
| 26 | 19 | NA | 30.16 | D | D | 62% | |
| 32 | 13 | NA | 24.00 | B | BB | 100% | |
For Double Rotary “B” Tooling 27 Station Tableting Machines
| No of Station | Max Tablet Size | Die O.D. | Tooling | Production Increase | |||
|---|---|---|---|---|---|---|---|
| Round | Caplet | Punch | Die | ||||
| Existing | 27 | 18.5 | 19 | 30.16 | B | D | |
| Proposed | 23* | 25.0 | 25 | 38.10 | D | D | -15% |
| 25* | 25.0 | 25 | 38.10 | D | D | -8% | |
| 27 | 19 | 21 | 30.16 | D | B | 0% | |
| 33 | 18.5 | 19 | 30.16 | B | B | 22% | |
| 35 | 18.5 | 19 | 30.16 | B | B | 29% | |
| 41 | 13.0 | OPT | 24.00 | B | BB | 51% | |
| 45 | 13.0 | OPT | 24.00 | B | BB | 66% | |
